Recon Spirodoc A23-OW.12858

MIR Spirodoc

£845.00 ex. VAT

The MIR Spirodoc is a touchscreen, handheld spirometer, with backlit LCD display.

SKU: N/A Category:

Description

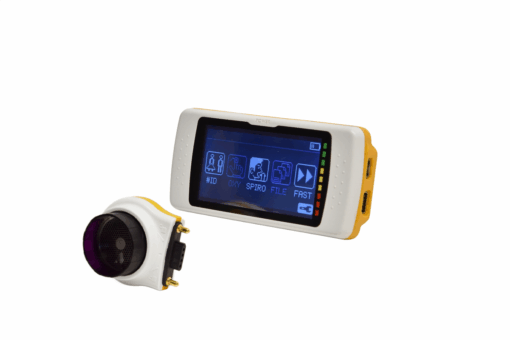

MIR Spirodoc Spirometer

The MIR Spirodoc ® Spiro is a highly portable, diagnostic handheld spirometer. The device can be configured to operate with advanced parameters for full spirometry, reduced parameters set for simple screening and a simple mode for patient home use.

KEY FEATURES

  • Handheld spirometer with touchscreen
    Navigate easily through the icon-based menus on a clear, high resolution screen
  • Three functional modes
    Choose between full spirometry mode, basic screening mode or patient mode for home testing
  • Patient’s home-care symptoms eDiary
    With patient mode enabled, users can monitor themselves and record their symptoms
  • Large memory storage
    Store up to 10,000 tests
  • Bluetooth® and USB connectivity to PC
    Download results stored on the device and conduct real-time spirometry using MIR Spiro® PC software.
  • Oximeter available as optional extra – please ask for further details



Comes with 12 month calibration certificate.

Reconditioned equipment may show some signs of wear, including light scratches and/or blemishes. All equipment is fully functional and, where applicable, is calibrated to within the relevant standard.

TECHNICAL SPECIFICATION

Device category Diagnostic spirometer
Spirometry parameters FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25%-75%, FET, Estimated Lung Age, Extr. Vol., FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV measured, MVV calculated
Flow measurement ± 16 L/s
Volume accuracy ± 3% or 50 mL
Flow accuracy ± 5% or 200 mL/s
Flow sensor Bi-directional digital turbine
Dynamic resistance at 12 L/s <0.5 cmH2O/L/s
Temperature sensor Semiconductor (0-45°C)
Data transmission USB 2.0 On-The-Go and Bluetooth® 2.1
Display 128×64 pixels LCD Backlit Touch screen Display
Power Lithium ion 3.7V, 1100mA rechargeable battery

Battery charger (optional): 100VAC – 240VAC, 50Hz-60Hz output 5VDC, 500mA, micro USB type B
Dimensions Central unit: 101 x 48 x 16 mm – Removable turbine: 46 x 47 x 24mm

Additional information

Choose your Spirodoc

Asset 12858
